    Hose Crimping Machine Second Hand Hose Crimper Hydraulic Hose Crimp Ferrules

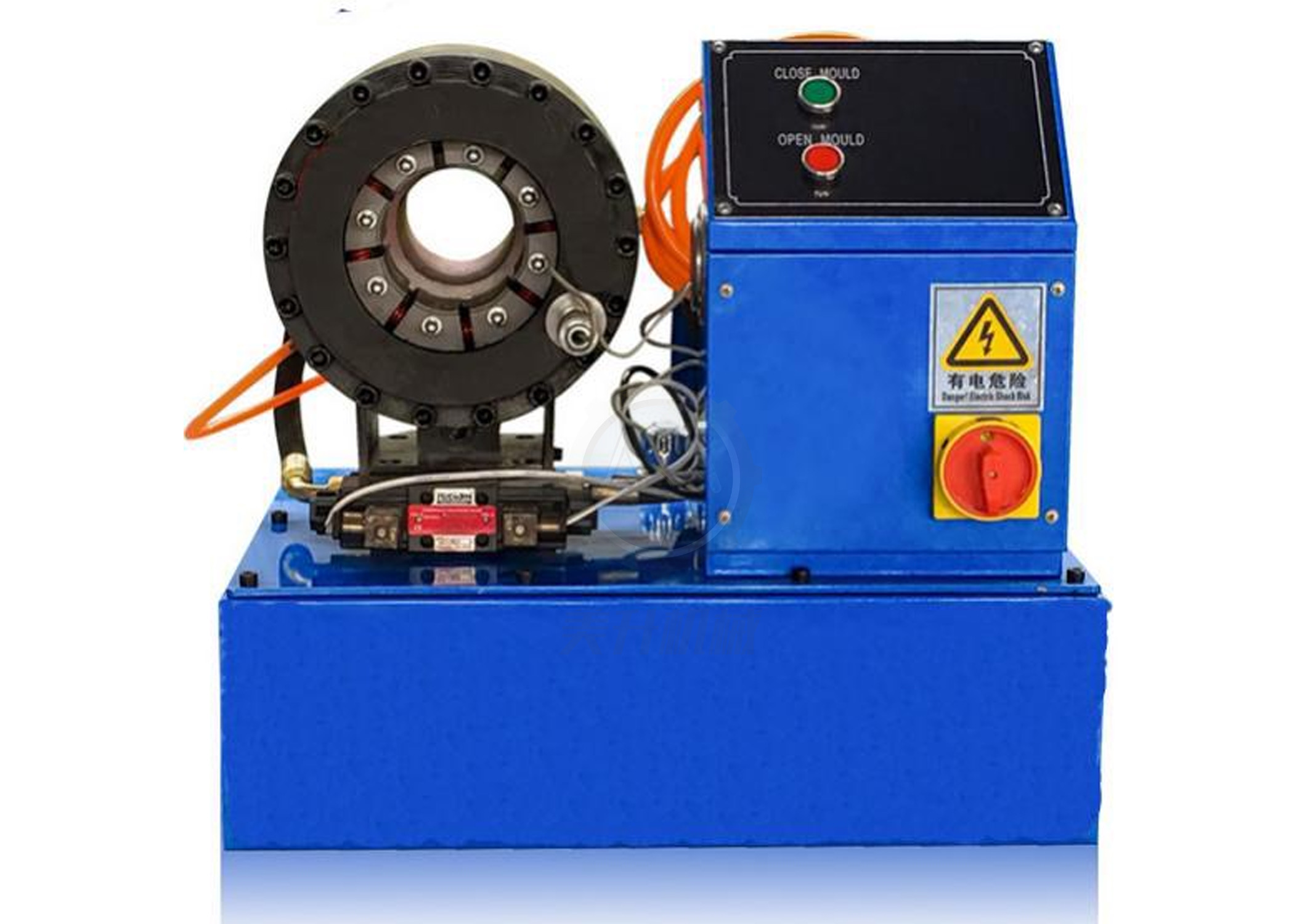

    Second Hand Hose Crimper MS - 51 For Hydraulic Hose Ferrule Crimping Service


    HOSE CRIMPER MS-51 WITH HIGH PRESSURE


    DESCRIPTION


    MS-51 hydraulic hose pressing machine is the ideal choice for vehicle hose repair workshop. It is offered with 10 die sets for free, range from 14mm to 63mm, suitable for high pressure rubber hose from 6mm inner diameter to 51mm inner diameter pressing. Hose assembly after crimping is with smooth surface, no small-big head and oil leakage problem, which can resist exteme high pressure.


    MAIN FEATURES


    ► Automatic lubricating, easy maintenance

    ► Simple and human operating panel

    ► Die sets easy to change and install

    ► High productivity

    ► Quick speed


    TECHNICAL DATA


    Model

    MS-51 Pipe Crimping Machine

    Crimping Range

    14 - 87(mm)

    Crimping Force

    500 (T)

    Hose Size

    1/4 - 2 (inch)

    Max. Opening

    30 (mm)

    Die Sets

    10

    Die Set Type

    51

    System Pressure

    31.5 (Mpa)

    Accuracy

    0.05 (mm)

    Control

    MS

    Standard Voltage

    220 (V) Mono - phase

    Motor Power

    3 (KW)

    Length

    670 (mm)

    Width

    430 (mm)

    Height

    820 (mm)

    Weight

    260 (KG)



    HOSE CRIMPER 51 DIE SETS


    Die No. #

    Crimping Range

    Length

    6*

    6 ... 8mm

    35mm

    8*

    8 ... 10mm

    35mm

    10*

    10 ... 12mm

    35mm

    12*

    12 ... 15mm

    35mm

    15

    15 ... 19mm

    60mm

    19

    19 ... 23mm

    60mm

    23

    23 ... 26mm

    60mm

    26

    26...31mm

    60mm

    31

    31 ... 36mm

    70mm

    36

    36 ... 41mm

    70mm

    41

    41 ... 47mm

    70mm

    47

    47 ... 55mm

    80mm

    55

    55 ... 63mm

    80mm

    63

    63 ... 69mm

    80mm

    69*

    69 ... 76mm

    90mm

    NOTE


    • " * " for non standard mold

    • Customized molds are available

    • Special voltage 110V, 208V, 240V, 415V are availbale

    • Special frequency 60HZ available


    OPTIONAL


    • Quick Change Tool

    • Quick Change Die Set Rack
