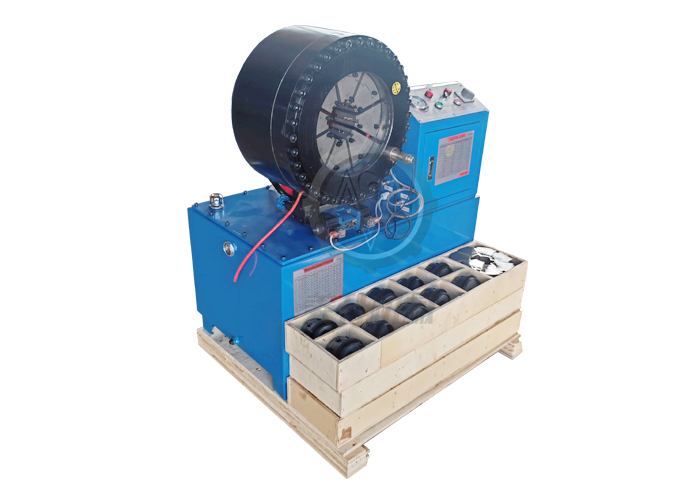

102mm Hydraulic Rubber Hose Crimping Machine 4 Inch Hose Crimper
HYDRAULIC RUBBER HOSE CRIMPING MACHINE MS - S102
DESCRIPTION
In the world of hydraulic systems, where reliability and accuracy
are crucial, the 4-inch hose crimping machine takes center stage.
This cutting-edge device redefines the standards of hose assembly
with its exceptional performance and versatility. Built to handle
hoses up to 4 inches in diameter, this machine ensures a tight and
secure connection, eliminating leaks and enhancing overall system
efficiency.
Equipped with advanced crimping technology, it offers precise
control and consistency, delivering professional-grade results with
every operation. From industrial applications to heavy machinery,
this powerhouse brings convenience, reliability, and durability to
the forefront, making it an indispensable tool for any hydraulic
operation. Experience the future of hose crimping with the
unrivaled capabilities of the 4-inch hose crimping machine.
MAIN ADVANTAGES
1. Wide Crimping Capacity:
Versatile hose size compatibility.
2. Precise and Consistent Crimping:
Accurate and uniform results.
3. Advanced Technology Integration:
Programmable, digital, automated controls.
4. Durable and Safe Construction:
Long-lasting, operator protection.
TECHNICAL DATA
Model | MS-S102 Rubber Hose Crimping Machine |
Crimping Range | 14 - 187 (mm) |
Crimping Force | 1500 (T) |
Hose Size | 1/4 - 4 (inch) 6 Layers |
Max. Opening | 30 (mm) |
Die Sets | 16 + 1 |
Die Set Type | 51 + 102 |
System Pressure | 31.5 (Mpa) |
Accuracy | 0.05 (mm) |
Control | MS |
Standard Voltage | 220 (V) / 380 (V) |
Motor Power | 4 (KW) |
Length | 850 (mm) |
Width | 530 (mm) |
Height | 980 (mm) |
Weight | 500 (KG) |
51 HOSE CRIMPER DIE SETS
Die No. | Crimping Range | Length |
6* | 6 - 8 mm | 35 |
8* | 8 - 10 mm | 35 |
10* | 10 - 12 mm | 35 |
12* | 12 - 15 mm | 35 |
15 | 15 - 19 mm | 60 |
19 | 19 - 23 mm | 60 |
23 | 23 - 26 mm | 60 |
26 | 26 - 31 mm | 60 |
31 | 31 - 36 mm | 70 |
36 | 36 - 41 mm | 70 |
41 | 41 - 47 mm | 70 |
47 | 47 - 55 mm | 80 |
55 | 55 - 63 mm | 80 |
63 | 63 - 75 mm | 80 |
75 | 75 - 87 mm | 100 |
| 87 | 87 - 100 mm | 120 |
| 100 | 100 - 115 mm | 120 |
| 115 | 115 - 130 mm | 120 |
| 130 | 130 - 147 mm | 120 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
