    Hydraulic Cable Crimpers For Sale Steel Braided Brake Line Crimping Tool

    Ask Lasest Price
    Brand Name : MENSION
    Model Number : MS-NC130-I
    Certification : CE RoHS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Sets Per Month
    Delivery Time : 2 - 7 Working Days
    Price : Contact Us
    • Product Details
    • Company Profile

    Hydraulic Cable Crimpers For Sale Steel Braided Brake Line Crimping Tool


    DIGITAL BRAKE HOSE CRIMPING MACHINE MS-NC130-I


    DESCRIPTION


    MS-NC130-I utilizes the advanced PLC computer numerical control technology, gives the user a more convenient operation system. It is widely used in various machinery repair workshop and hose assembly making factories.

    ADVANTAGES


    1) Use the famous NACHI valve, high hardness, big flow.
    2) Quick change for die sets, makes it more convenient and saves working time.
    3) High quality PLC control system, crimping with high accuracy and stability.


    TECHNICAL DATA


    Model

    MS-NC130-I Hose Crimping Machine

    Crimping Range

    14 - 87 (mm)

    Crimping Force

    650 (T)

    Hose Size

    1/4 - 2.5 (inch)

    Max. Opening

    31 (mm)

    Die Sets

    13

    Die Set Type

    P32

    System Pressure

    31.5 (Mpa)

    Accuracy

    0.01 (mm)

    Control

    MS

    Standard Voltage

    220 (V) / 380 (V)

    Motor Power

    3.75 (KW)

    Length

    650 (mm)

    Width

    550 (mm)

    Height

    1360 (mm)

    Weight

    310 (KG)




    P32 CRIMPER DIE SETS


    Die No.

    Crimping Range

    Length

    6*

    6 - 8mm

    55

    8*

    8 - 10mm

    55

    10*

    10 - 12mm

    55

    12*

    12 - 14mm

    55

    14

    14 - 16mm

    55

    16

    16 - 19mm

    55

    19

    19 - 22mm

    55

    22

    22 - 26mm

    70

    26

    26 - 30mm

    70

    30

    30 - 34mm

    70

    34

    34 - 39mm

    75

    39

    39 - 45mm

    75

    45

    45 - 51mm

    90

    51

    51 - 57mm

    90

    57

    57 - 63mm

    100

    63

    63 - 69mm

    110

    69

    69 - 78mm

    110


    NOTE


    - * for non standard die sets;
    - Customized die sets are available;
    - Special voltage 110V, 208V, 240V, 415V are availbale;

    ► NEW DESIGN CRIMPING HEAD


    New inner structure design, enable high accuracy even for using after years

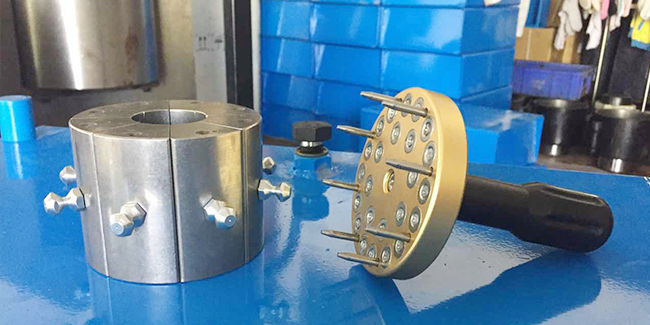

    ► CR12MOV DIE SETS


    13 die sets hardness 59-63HRC, with quick change tool, productivity improve much.




    ► HIGH QUALITY MOTOR


    Copper wire with aluminium sheel, god heat releasing, longer service life.




    ► FAMOUS PLC CONTROL


    Stable microcomputer control with high accuracy and multifucntion




    ► OEM SERVICE AVAILABLE


    NC130-I can be customized on different color, buttons and die sets

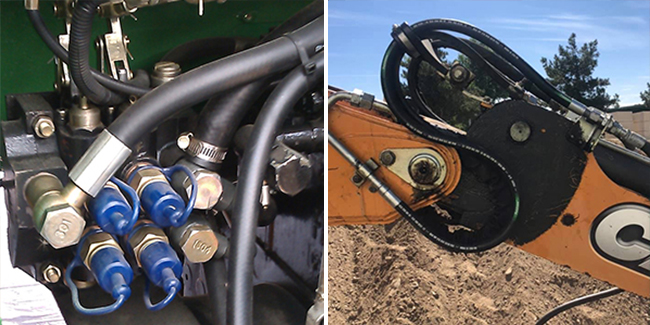

    ► APPLICATION SHOW


    NC130-I is a high configured hose crimping machine, it has the ability of crimping high pressure
    stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive
    system, air suspension or springs.






    ♦ How to choose a suitable hose crimping machine?


    1) Control system


    There are 2 control systems of all hose crimping machine, MS or UC control. MS is mechnical system which using a micrometer to control the crimping diameter and manually control the crimping progress; UC is a PLC control system, using a micro computer control the whole system, including crimping diameter, crimping time, it is a modern device, so price is higher.

    2) Crimping size


    Hose crimping machine is seperated based on the maximum hose it can crimp, so there is 2 inch crimper, 3 inch crimper, 4 inch crimper, 6 inch crimper, etc.

    3) Die changing way


    Die sets can be changed manually one by one, or can be changed at one time with a quick change tool.

    4) Material or spares quality also influence the price and cafiguration of the hose crimper.
