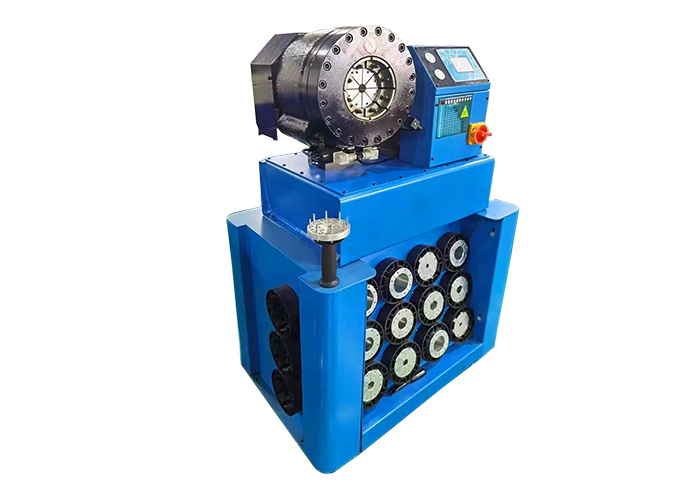

ELECTRIC MANUAL HOSE CRIMPING MACHINE
MS-NC130-I
DESCRIPTION
MS-NC130-I use high pressure piston oil pumps, eight pieces molds,
the mold is installed with strong spring force, with structured
compact, simple operation, advanced oil circuit design, simple and
fast installation, fast replacement speed, high efficiency,
reliable performance, fast deduction speed. The range of deduction
pipes: inner diameter 6-64mm, suitable for high-pressure oil pipes,
hydraulic oil pipes, glue pipes, iron fluorine tubes, metal
connectors with one to six-layer steel wire.
ADVANTAGES
1. Advanced PLC control technology, more intelligent;
2. Italian imported big pump;
3. Japan hydraulic valve (Germany Rexroth hydraulic system);
4. 4 KW iconic Siemens pure copper wire motor;
5. High -precision one -one forging machine head
TECHNICAL DATA
Model | MS-NC130-I Hose Crimper |
Crimping Range | 14 - 87 (mm) |
Crimping Force | 650 (T) |
Hose Size | 1/4 - 2.5 (inch) |
Max. Opening | 31 (mm) |
Die Sets | 13 |
Die Set Type | P32 |
System Pressure | 31.5 (Mpa) |
Accuracy | 0.01 (mm) |
Control | MS |
Standard Voltage | 220 (V) / 380 (V) |
Motor Power | 3.75 (KW) |
Length | 650 (mm) |
Width | 550 (mm) |
Height | 1360 (mm) |
Weight | 310 (KG) |
P32 CRIMPING MACHINE DIE SETS
Die No. | Crimping Range | Length |
6* | 6 - 8mm | 55 |
8* | 8 - 10mm | 55 |
10* | 10 - 12mm | 55 |
12* | 12 - 14mm | 55 |
14 | 14 - 16mm | 55 |
16 | 16 - 19mm | 55 |
19 | 19 - 22mm | 55 |
22 | 22 - 26mm | 70 |
26 | 26 - 30mm | 70 |
30 | 30 - 34mm | 70 |
34 | 34 - 39mm | 75 |
39 | 39 - 45mm | 75 |
45 | 45 - 51mm | 90 |
51 | 51 - 57mm | 90 |
57 | 57 - 63mm | 100 |
63 | 63 - 69mm | 110 |
69 | 69 - 78mm | 110 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;

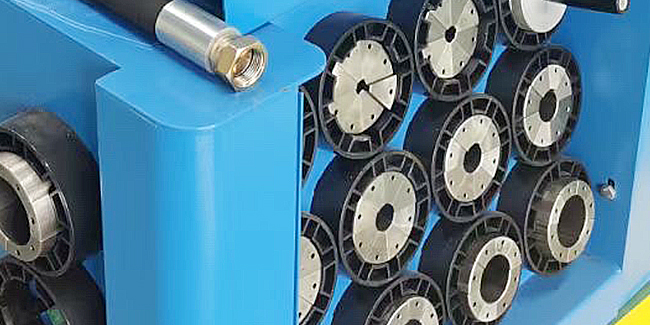

► MACHINE AND DIE SET RACK
All the 13 pieces die sets can be placed in the rack, convenient
for using.
► FAMOUS PLC CONTROL SYSTEM
Advanced micro computer control system with more intelligent and
more stability.

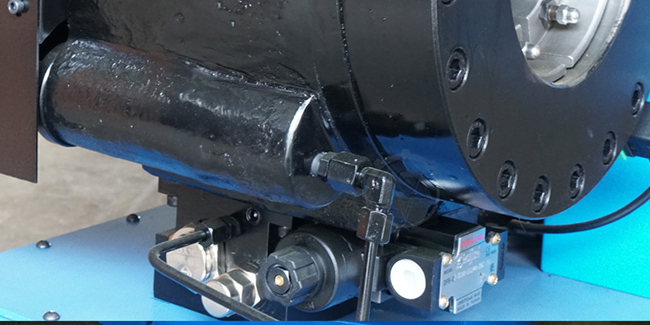

► ONE PIECE DESIGN HYDRAULIC CYLINDER
With unique structure, the cylinder can improve the configuration
during using.
► DOUBLE BEVEL DESIGN FOR CRIMPING UNIT
The master die and cylinder connect with a double bevel, high
accuracy and big crimping force.
► CRIMPING SAMPLES WITH THE MACHINE
