    Gates Mobile Hydraulic Hose Crimper Portable HydraulicHose Crimping Machine Two Inches

    Ask Lasest Price
    Brand Name : MENSION
    Model Number : MS-51KH
    Certification : CE RoHS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Sets Per Month
    Delivery Time : 2 - 7 Working Days
    Price : Contact Us
    • Product Details
    • Company Profile

    Gates Mobile Hydraulic Hose Crimper Portable HydraulicHose Crimping Machine Two Inches

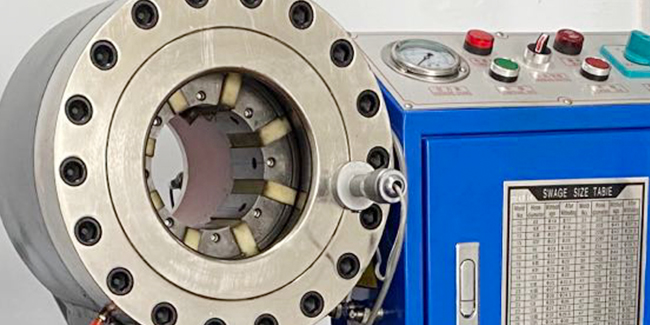

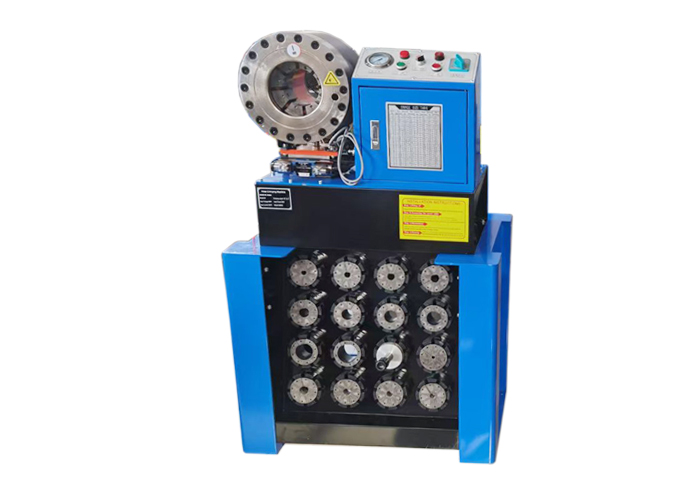

    PORTABLE HYDRAULIC HOSE CRIMPER MS-51KH


    DESCRIPTION


    MS-51KH hose crimping machine is compact in strcuture, but powerful in criming capacity. With high quality piston pump, it can crimping big size hydraulic hose with low noise.


    MAIN FEATURES


    1. Accurate crimping with high precision dial;

    2. High pressure but very safe;

    3. Low maintenance cost;

    4. Easy to learn.


    TECHNICAL DATA


    Model

    MS-51KH Portable Hydraulic Hose Crimper

    Crimping Range

    14 - 87 (mm)

    Crimping Force

    500 (T)

    Hose Size

    1/4 - 2 (inch)

    Max. Opening

    30 (mm)

    Die Sets

    10

    Die Set Type

    51

    System Pressure

    31.5 (Mpa)

    Accuracy

    0.05 (mm)

    Control

    MS

    Standard Voltage

    220 (V) / 380 (V)

    Motor Power

    3 (KW)

    Length

    670 (mm)

    Width

    430 (mm)

    Height

    1520 (mm)

    Weight

    310 (KG)



    51 SERIES CRIMPER DIE SETS


    Die No.

    Crimping Range

    Length

    6*

    6 - 8mm

    35

    8*

    8 - 10mm

    35

    10*

    10 - 12mm

    35

    12*

    12 - 15mm

    35

    15

    15 - 19mm

    60

    19

    19 - 23mm

    60

    23

    23 - 26mm

    60

    26

    26 - 31mm

    60

    31

    31 - 36mm

    70

    36

    36 - 41mm

    70

    41

    41 - 47mm

    70

    47

    47 - 55mm

    80

    55

    55 - 63mm

    80

    63

    63 - 69mm

    80

    69*

    69 - 76mm

    100

    NOTE


    - * for non standard die sets;

    - Customized die sets are available;

    - Special voltage 110V, 208V, 240V, 415V are availbale;
