HIGH PRESSURE PIPE CRIMPING MACHINE MS-E38

DESCRIPTION

MS-E38 hydraulic crimp machine for is a mid-range in terms of power, but compact from the point of view of space requirement. It provide 640T crimping force, is ideally suited for hose assembly single-piece prodcution in machine shops, repair workshop, etc. This hose crimping machine can be mounted on a special die set rack and all the 10 sets mold can be stored in the base for the operator convenience.

MAIN FEATURES

► Forged one-piece crimping head, no oil leakage

► Compact structure with light weight

► Double conical master die with big crimping force

► High hardness die sets, long service time

TECHNICAL DATA

38 CRIMPER DIE SETS

NOTE

• Customized die sets are available with different size or shape

• Special voltage such as 110V, 208V, 240V, 415V are availbale

• Foot pedal is available to make the hands free

► HYDRAULIC CRIMPING HEAD

One piece forged structure make the cylinder a long service time, double conical master die makes the

machine crimp with big force and high accuracy.

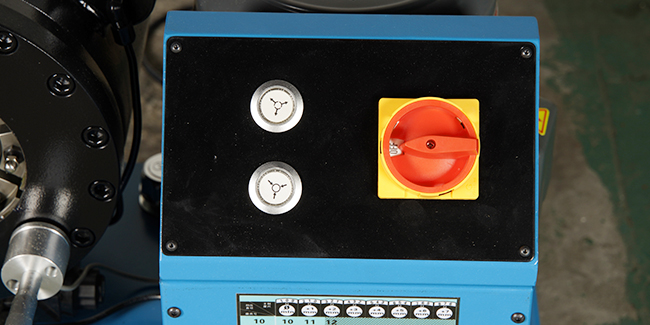

► HUMAN DESIGN OPERATE PANEL

Easy and convenient to operate with two buttons, more suitable for new user

► DIE SETS WITH HIGH HARDNESS

E38 is with 10 die sets with hardness of 59-63HRC, service time longer.

► CRIMPING DIAL

Hose crimping size are controled by a micrometer with high accuracy, no need to adjust the scale for

one size hose

► SAMPLE SHOW

MS-E38 have been widely used in hydraulic hose assembly crimping, cable and wire rope pressing,

tube swaging, car automotive components jointing, etc.

WHAT TOOLS NEED FOR HOSE ASSEMBLY CRIMPING?

► A cutting machine for cutting the rubber hose to needed length. (Sometimes a cleaning machine

will be made for cleaning the hose inner part)

► A rubber layer stripping machine for skiving the out or inner rubber layer, so the hose can be well

connected with the ferrule and fitting stem.

► A crimping machine for jointing the hydraulic hose, hose fitting stem and hose ferrule together,

to get a hose assembly.

► A pressure test machine for teasting the pressure that the hose assembly can bear, so to confirm

if it is a quality products.
