HIGH PRESSURE

HYDRAULIC HOSE CRIMPING MACHINE MS-E130

TECHNICAL DATA

130 CRIMPER DIE SETS

NOTE

• " * " for non standard die sets

• Customized dies of different shape length are available

• Special voltage 110V, 208V, 240V, 415V are availbale

OPTIONAL

1) Quick Change Tool

2) Quick Change Die Set Rack

3) UC control

4) Foot Pedal

5) Pressure Gauge

6) Normal Rack

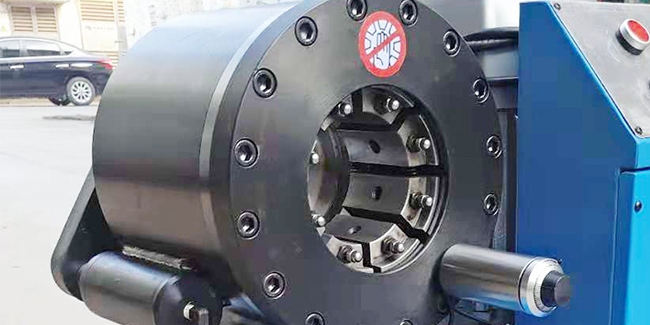

► FORGED HYDRAULIC CYLINDER

High quality steel, long service time, anti rust surface treatment

► DOUBLE BEVEL MASTER DIE

Mater die use double bevel deaign, with high accuracy and force

► HIGH ACCURACY CRIMPING DIAL

Crimping micrometer with accuracy 0.01mm, high stability, easy maintemance, stable performance.

► APPLICATION FOR E130

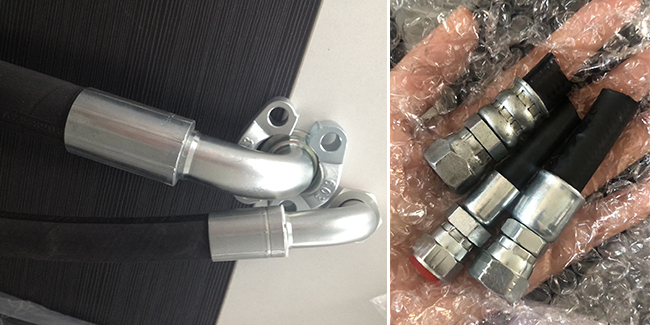

Crimping machine is widely used for quick jointing of tube or hose material, like high pressure hydraulic hose, industrial hoses, pipes, or wire and cables.

► HOW TO USE A HYDRAULIC HOSE CRIMPING MACHINE?

When you receive the hose crimping machine, please check the motor voltage is what you want. Then you can add hydraulic oil and start the motor to test the machine. (Note: NEW MACHINE IS NOT WITH HYDRAULIC OIL)

1) Add new hydraulic oil T46 about 50L;

2) Connecting electric, turn on the switch to check if wire connecting is right;

3) Closing and opening the head 10 times to free the air from the crimping head;

4) Choosing proper die sets;

5) Adjust the dial to proper scale;

6) Put assembled hose to the head and do crimping;

7) Test if the diameter is correct.
